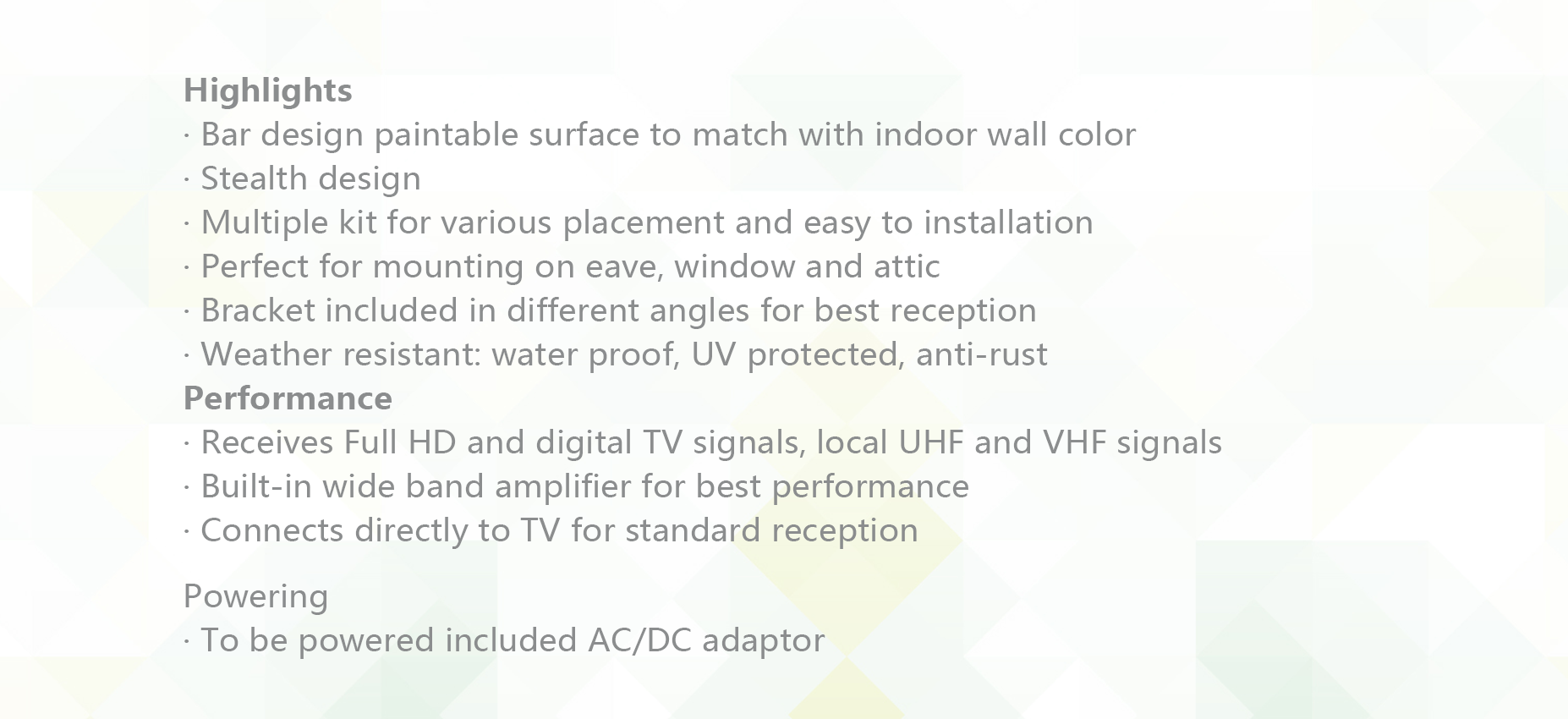

Highlights

• Bar design paintable surface to match with indoor wall color

• Stealth design

• Multiple kit for various placement and easy to installation

• Perfect for mounting on eave, window and attic

• Bracket included in different angles for best reception

• Weather resistant: water proof, UV protected, anti-rust

Performance

• Receives Full HD and digital TV signals, local UHF and VHF signals

• Built-in wide band amplifier for best performance

• Connects directly to TV for standard reception

Powering

• To be powered included AC/DC adaptor

Frequency  VHF:  174-230MHz   UHF:  470-862MHz

Output level:  105dBuV

Noise Figure:  ＜3.5dB

VSWR    VHF: ＜3.0   UHF:  ＜2.5

Impedance:  75Ω

Polarization:  Horizontal

F/B:  20dB

3dB Beam Width:   VHF±15°   UHF±15°

Working voltage：  DC 5V/550mA
