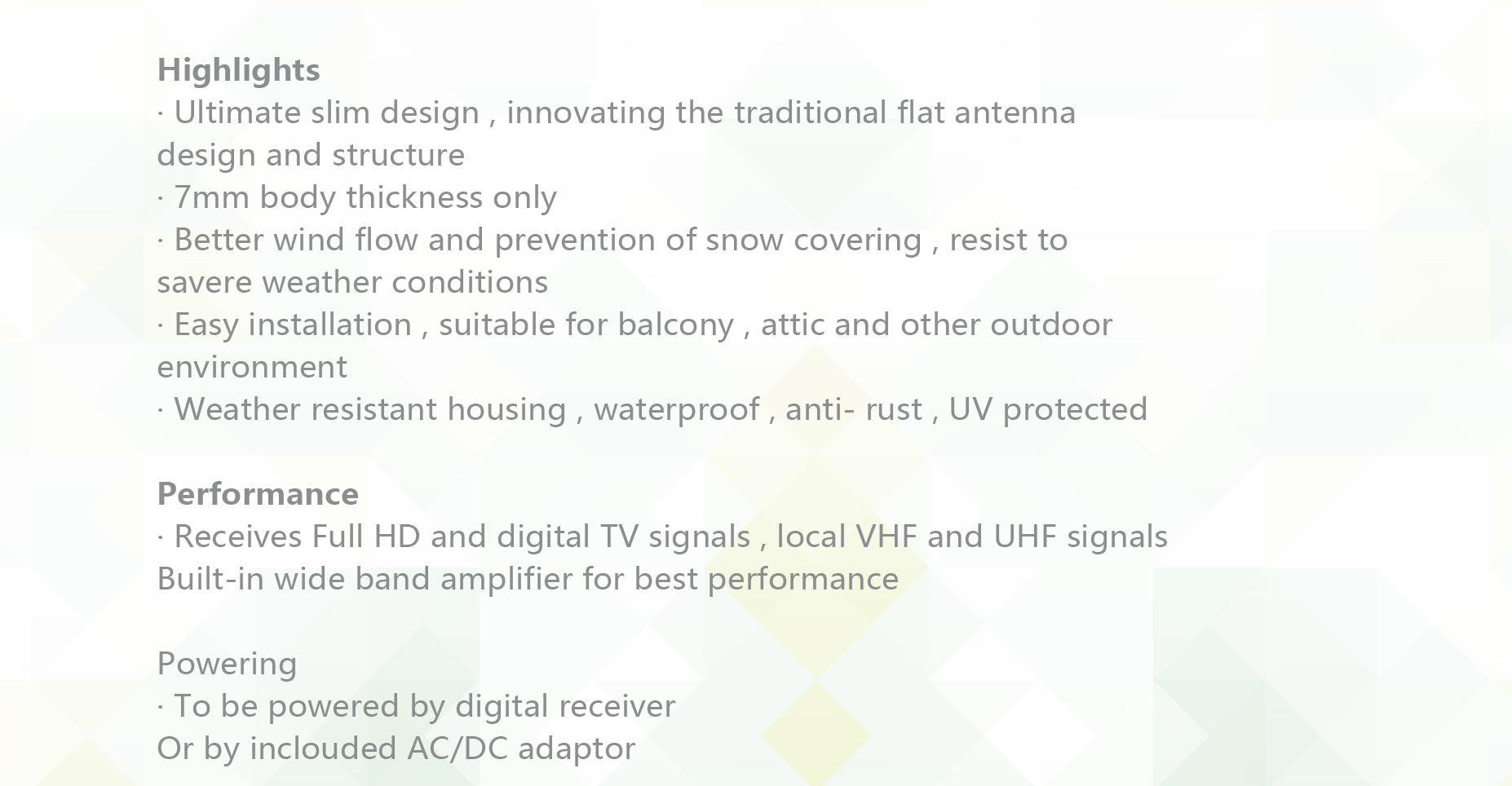

Highlights

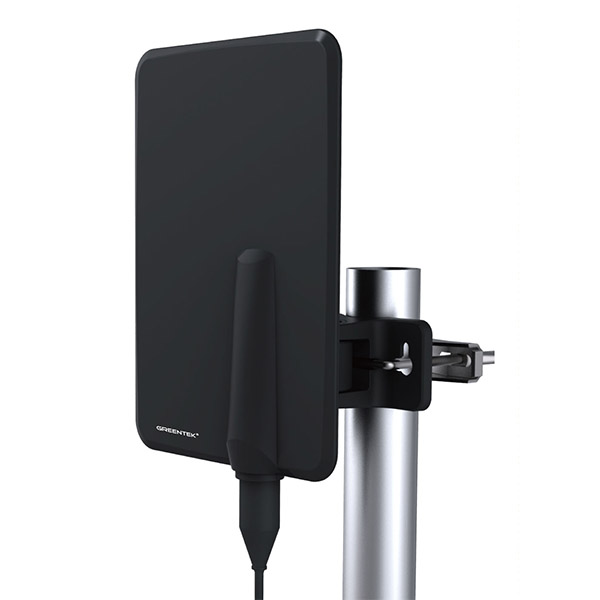

Ultimate slim, innovating the traditional flat antenna design and structure
7mm body thickness only
Better wind flow and prevention of snow covering, resistant to the severe weather conditions
Easy installation, suitable for balcony, attic and other outdoor environment
Weather resistant housing, waterproof, anti-rust , UV protected
Performance
Receives Full HD and digital TV signals, local VHF and UHF signals
Built-in wide band amplifier for best performance
Powering
To be powered by digital receiver
Or by included AC/DC adaptor

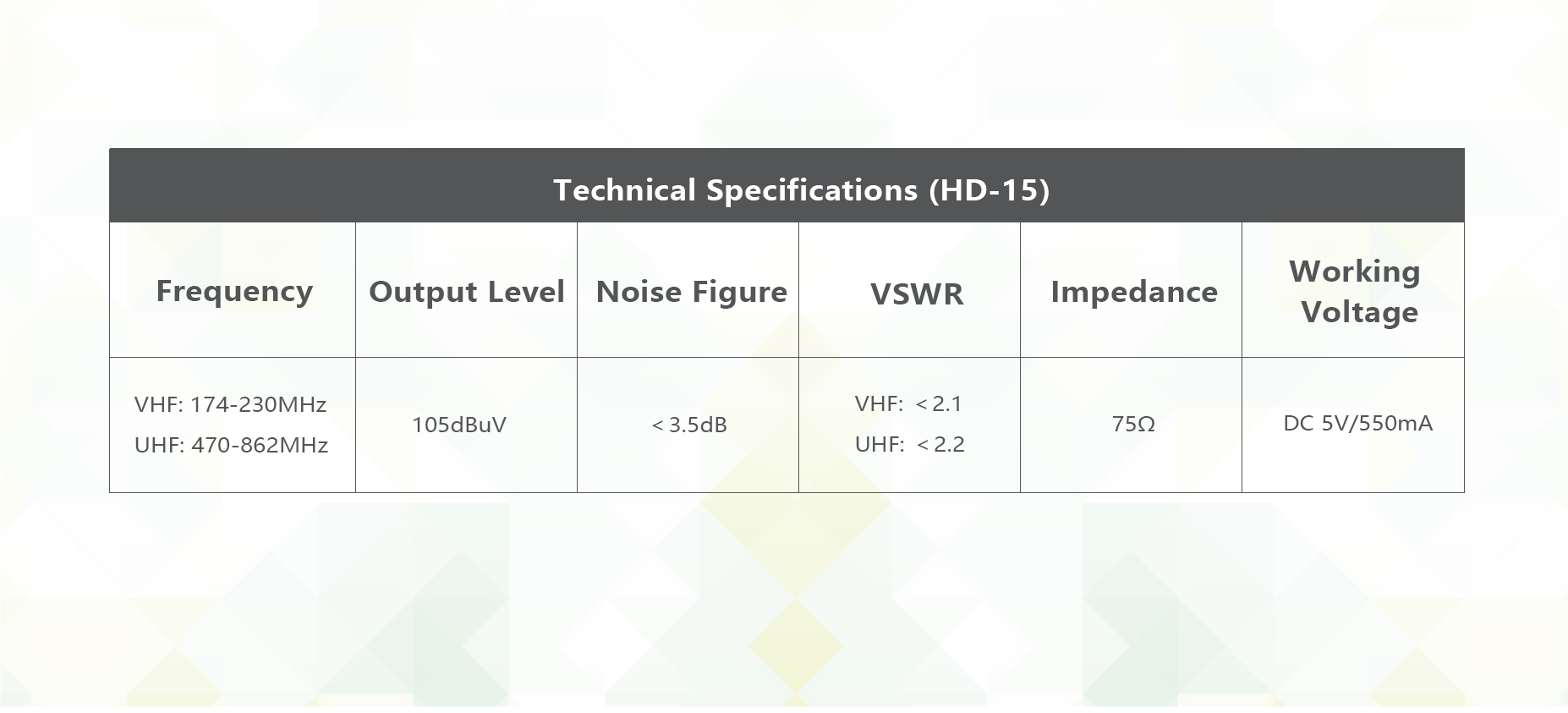

Frequency VHF: 174-230MHz UHF: 470-862MHz
Output level: 105dBuV
Noise Figure: ＜3.5dB
VSWR VHF:＜2.1 UHF: ＜2.2
Impedance: 75Ω
Working voltage： DC 5V/550mA
