  • DTVO-3

    Eave / Balcony Outdoor Antenna

    Compact Blade
    ·Rotates 360 degrees by infrared remote control or manual button on power supply
    ·Two output jacks, available for two TV sets
    ·Suitable for home, car, camping, marine
    ·Foldable elements, easy installation

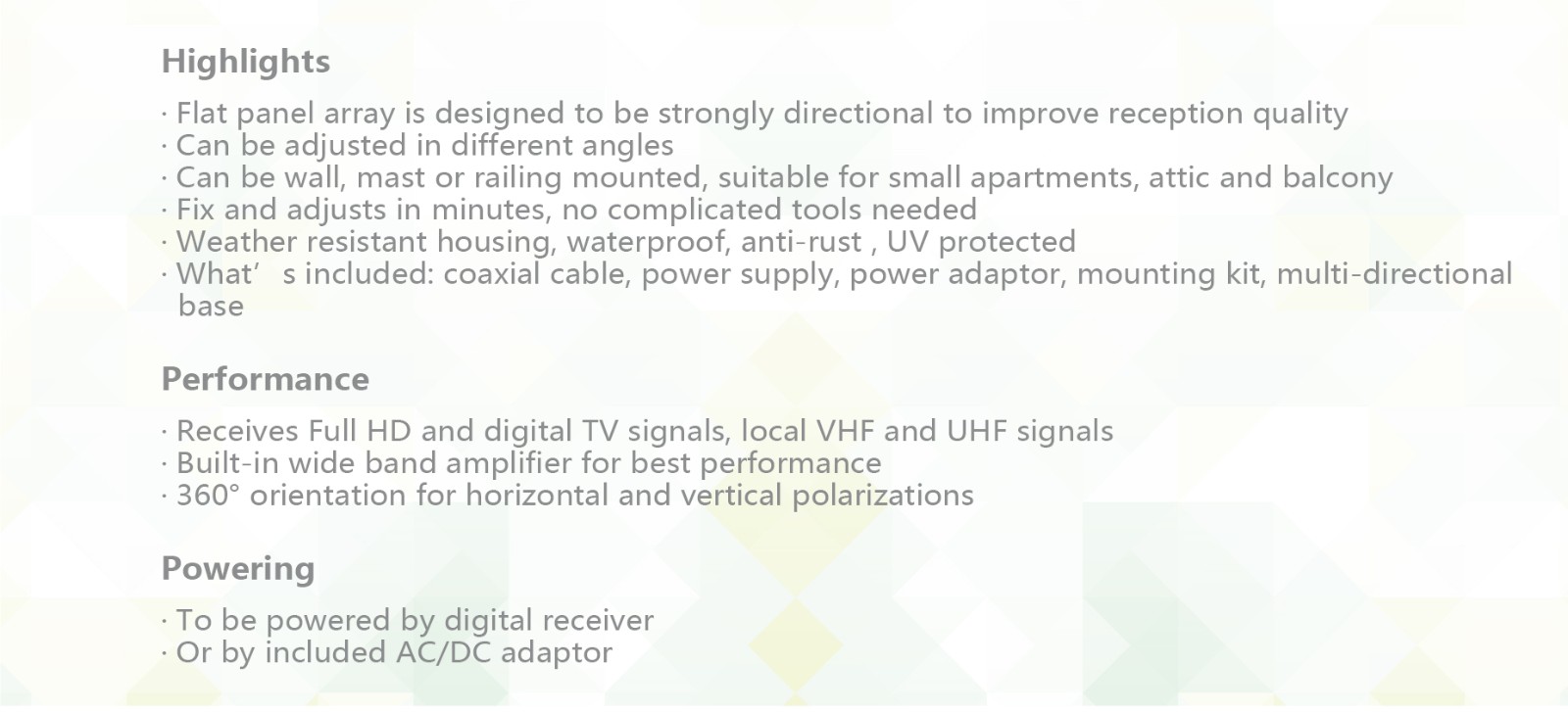

    Highlights

    • Flat panel array is designed to be strongly directional to improve reception quality

    • Can be adjusted in different angles

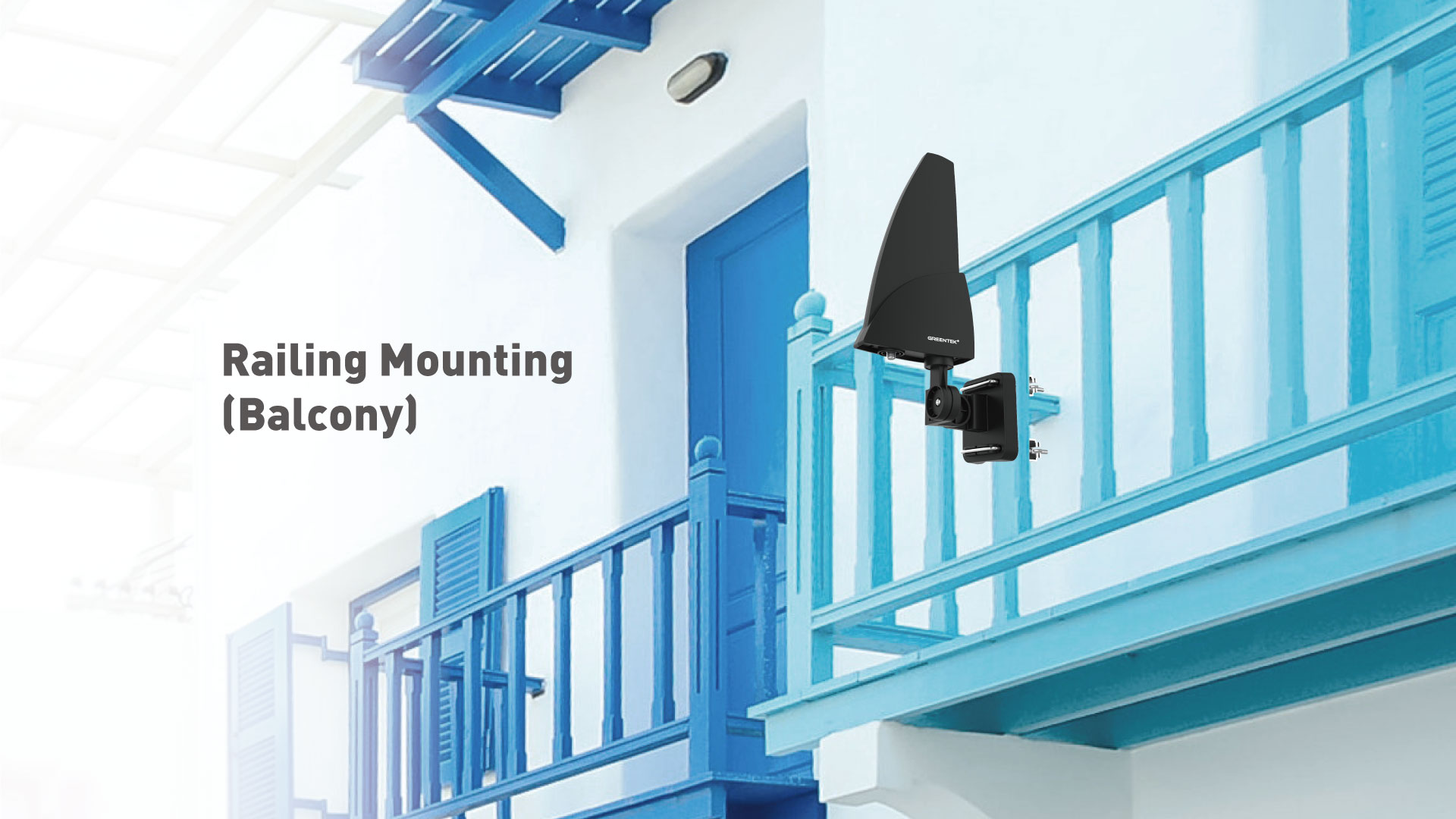

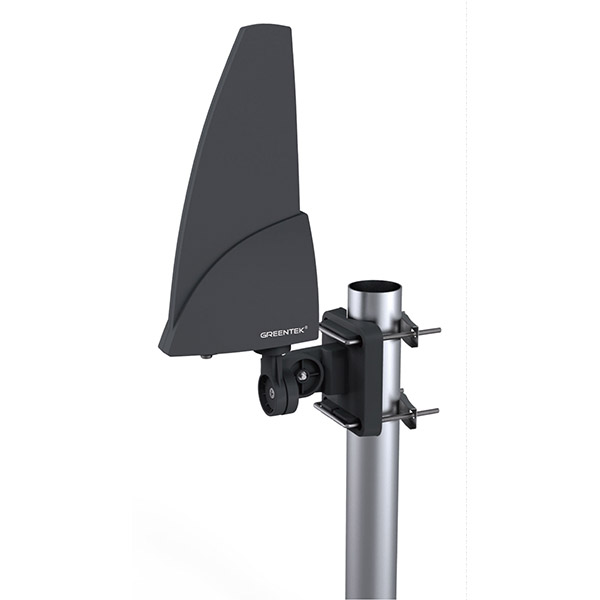

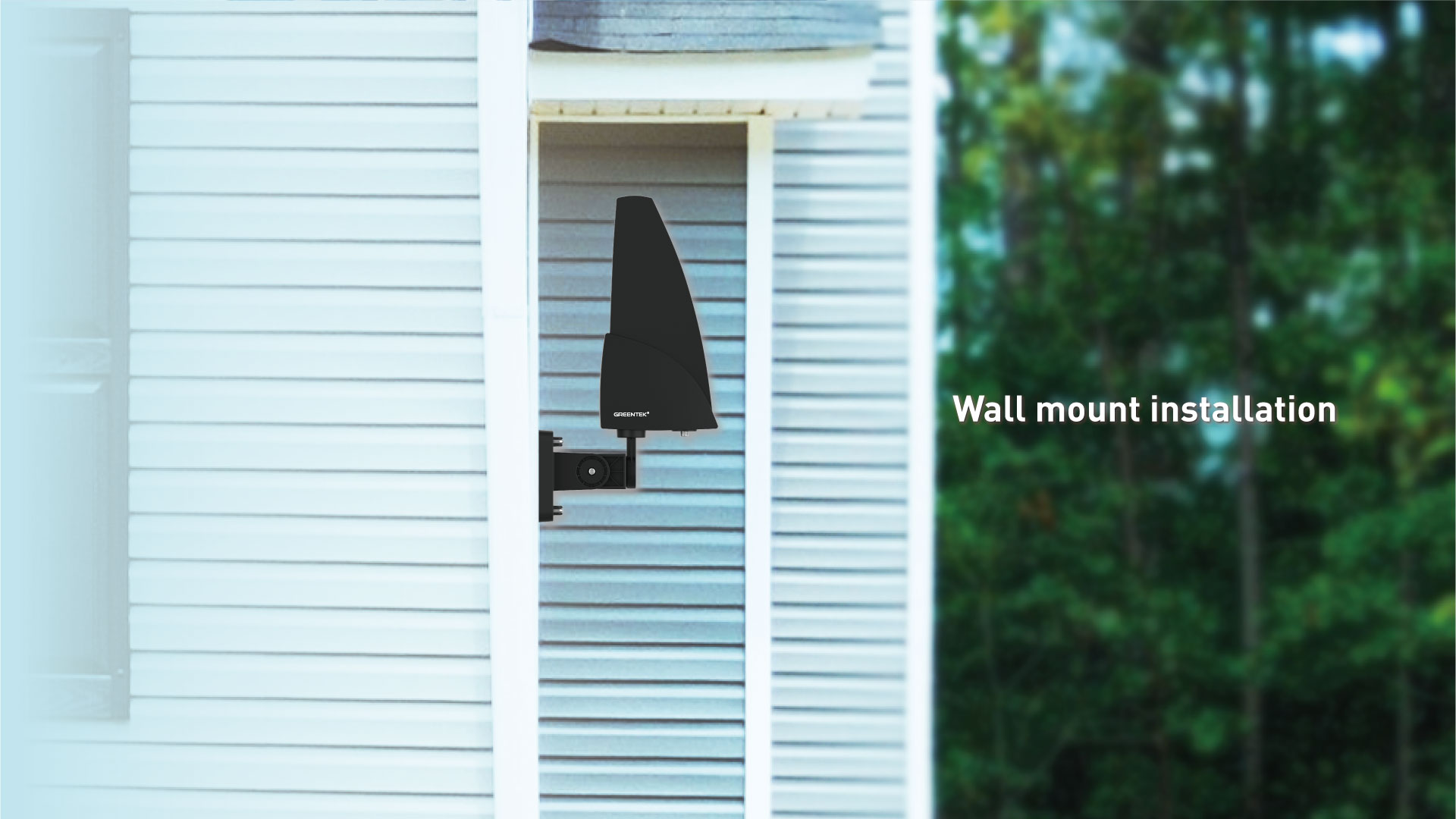

    • Can be wall, mast or railing mounted, suitable for small apartments, attic and balcony

    • Fix and adjusts in minutes, no complicated tools needed

    • Weather resistant housing, waterproof, anti-rust , UV protected

    • Whats included: coaxial cable, power supply, power adaptor, mounting kit, multi-directional base



    Performance

    • Receives Full HD and digital TV signals, local VHF and UHF signals

    • Built-in wide band amplifier for best performance

    • 360° orientation for horizontal and vertical polarization



    Powering

    • To be powered by digital receiver

    • Or by included AC/DC adaptor

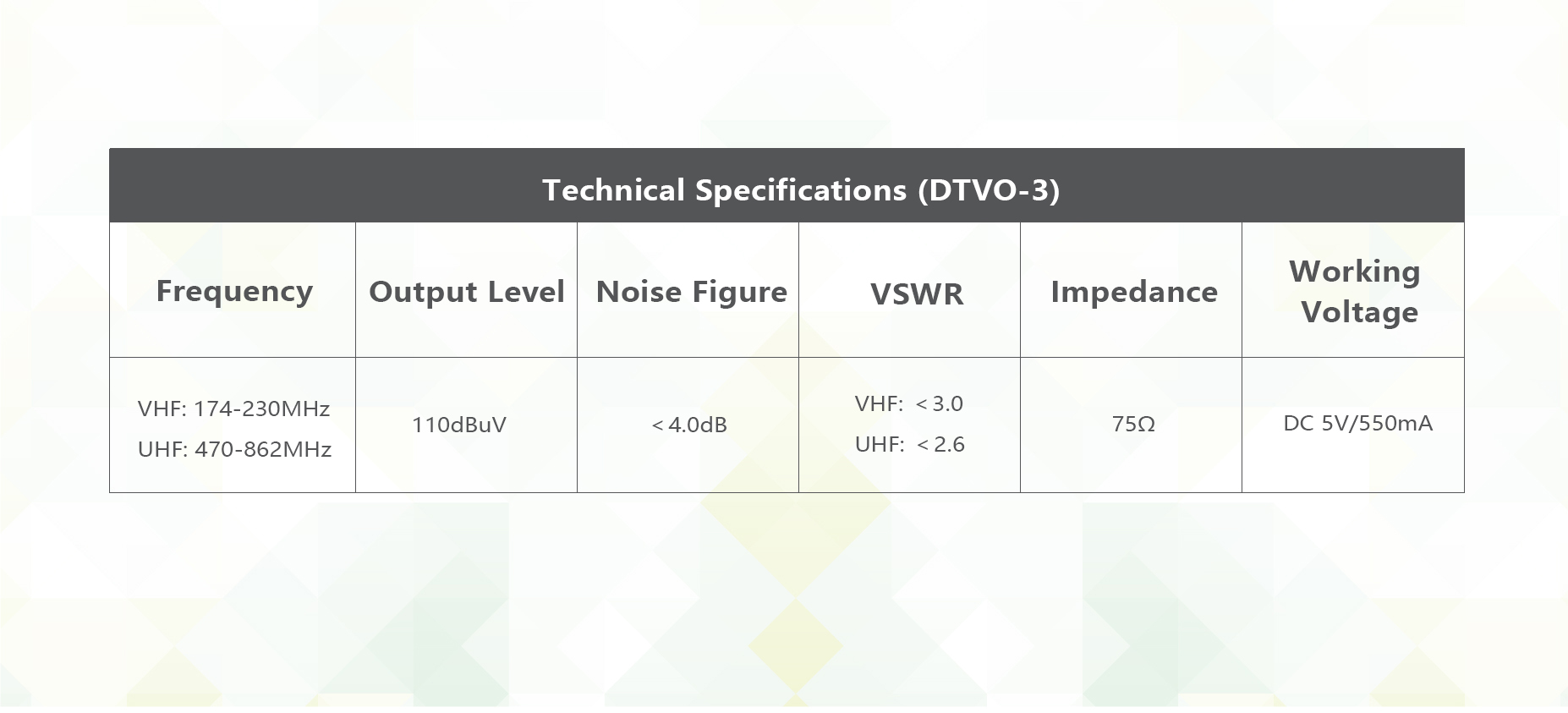

    Frequency   VHF: 174-230MHz     UHF: 470-862MHz

    Output level: 110dBuV

    Noise Figure: <4.0dB

    VSWR   VHF:<3.0   UHF: <2.6

    Impedance: 75Ω

    Working voltage: DC 5V/550mA
