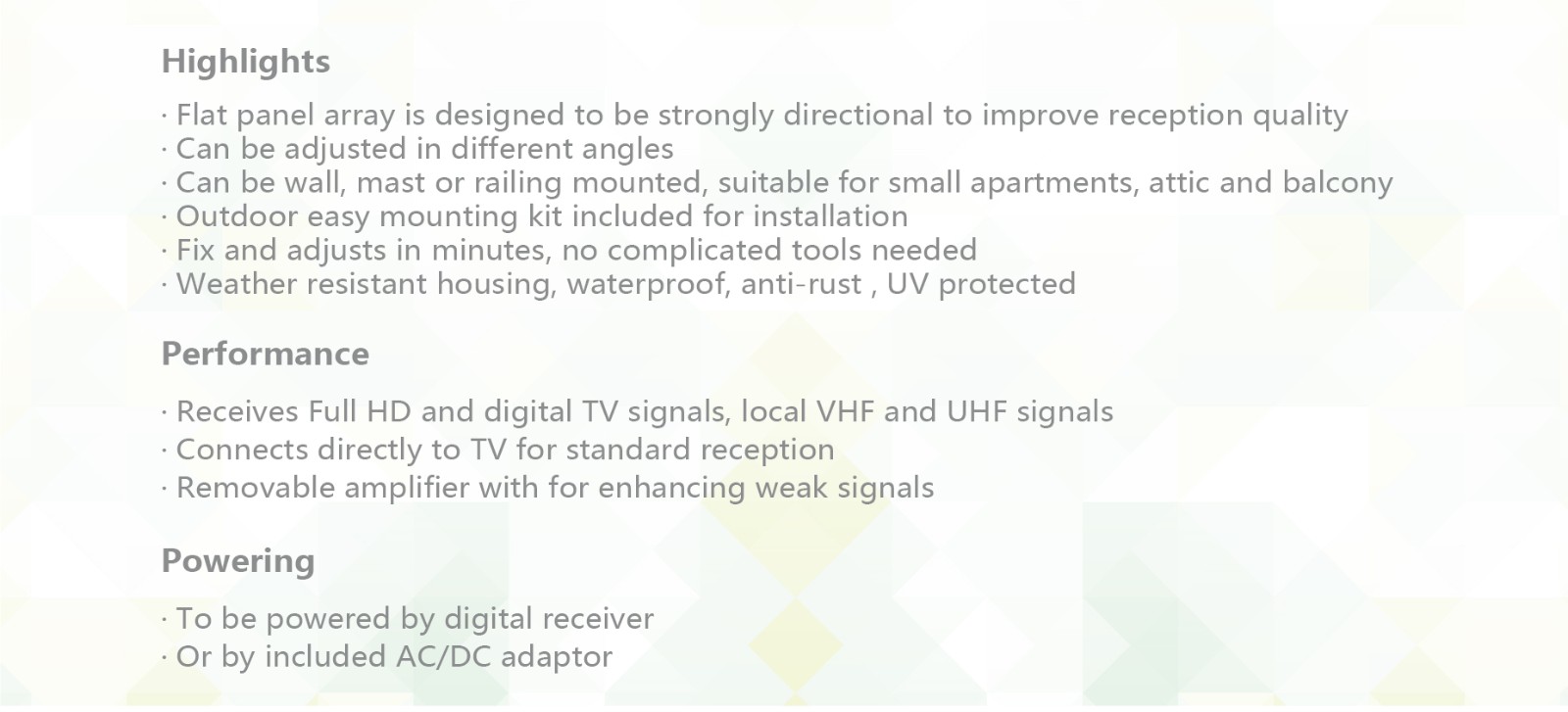

Highlights

• Flat panel array is designed to be strongly directional to improve reception quality

• Can be adjusted in different angles

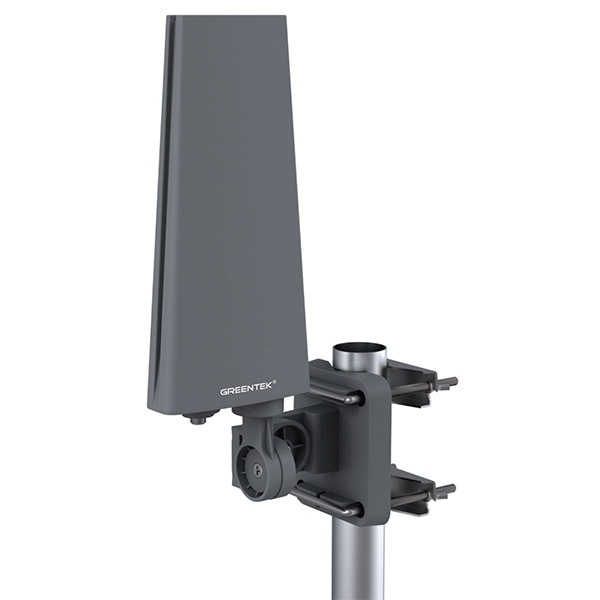

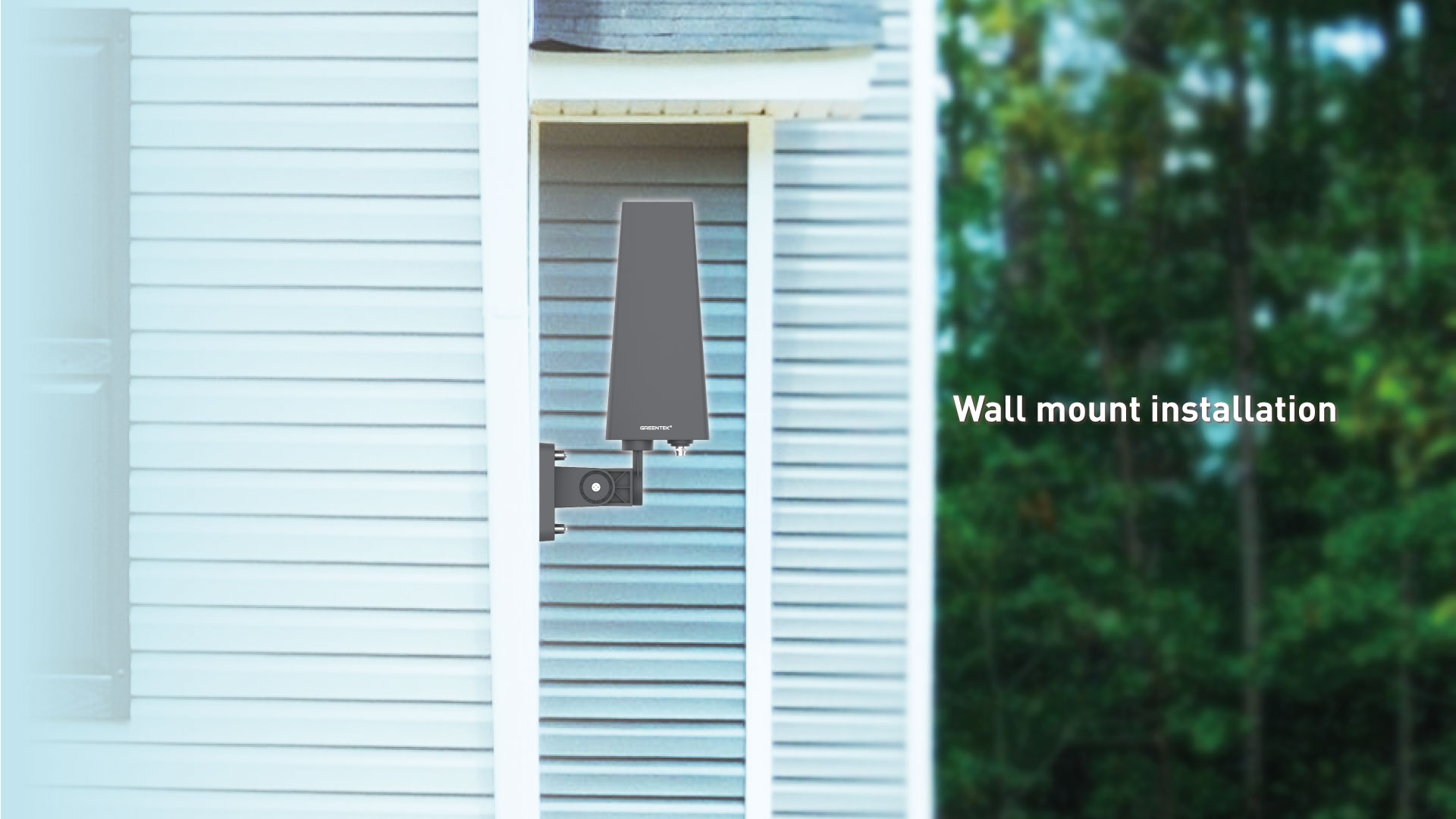

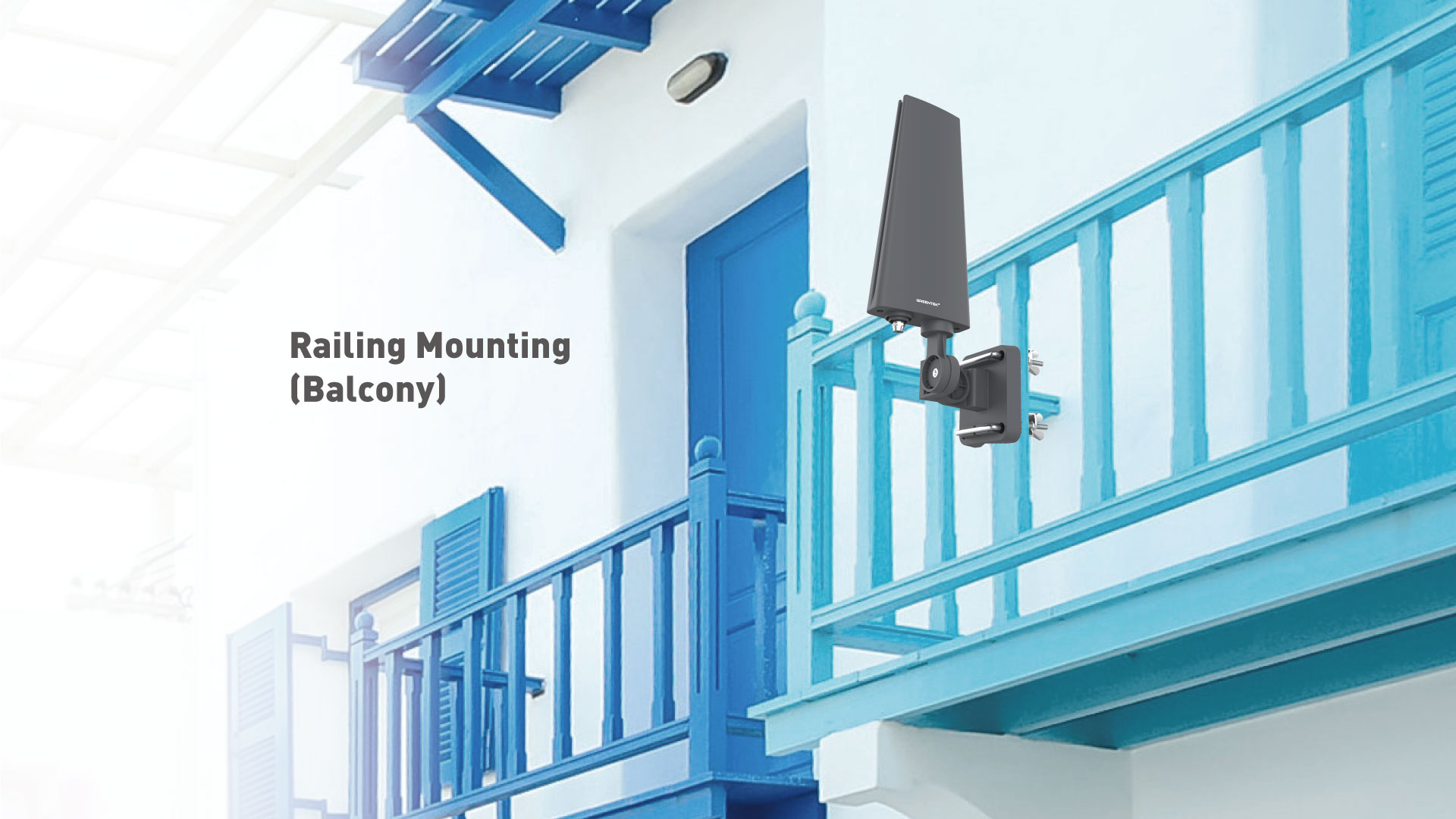

• Can be wall, mast or railing mounted, suitable for small apartments, attic and balcony

• Outdoor easy mounting, no complicated tools needed

• Fix and adjusts in minutes, no complicated tools needed

• Weather resistant housing, waterproof, anti-rust , UV protected

Performance

• Receives Full HD and digital TV signals, local VHF and UHF signals

• Built-in wide band amplifier for best performance

• 360° orientation for horizontal and vertical polarization

Powering

• To be powered by digital receiver

• Or by included AC/DC adaptor

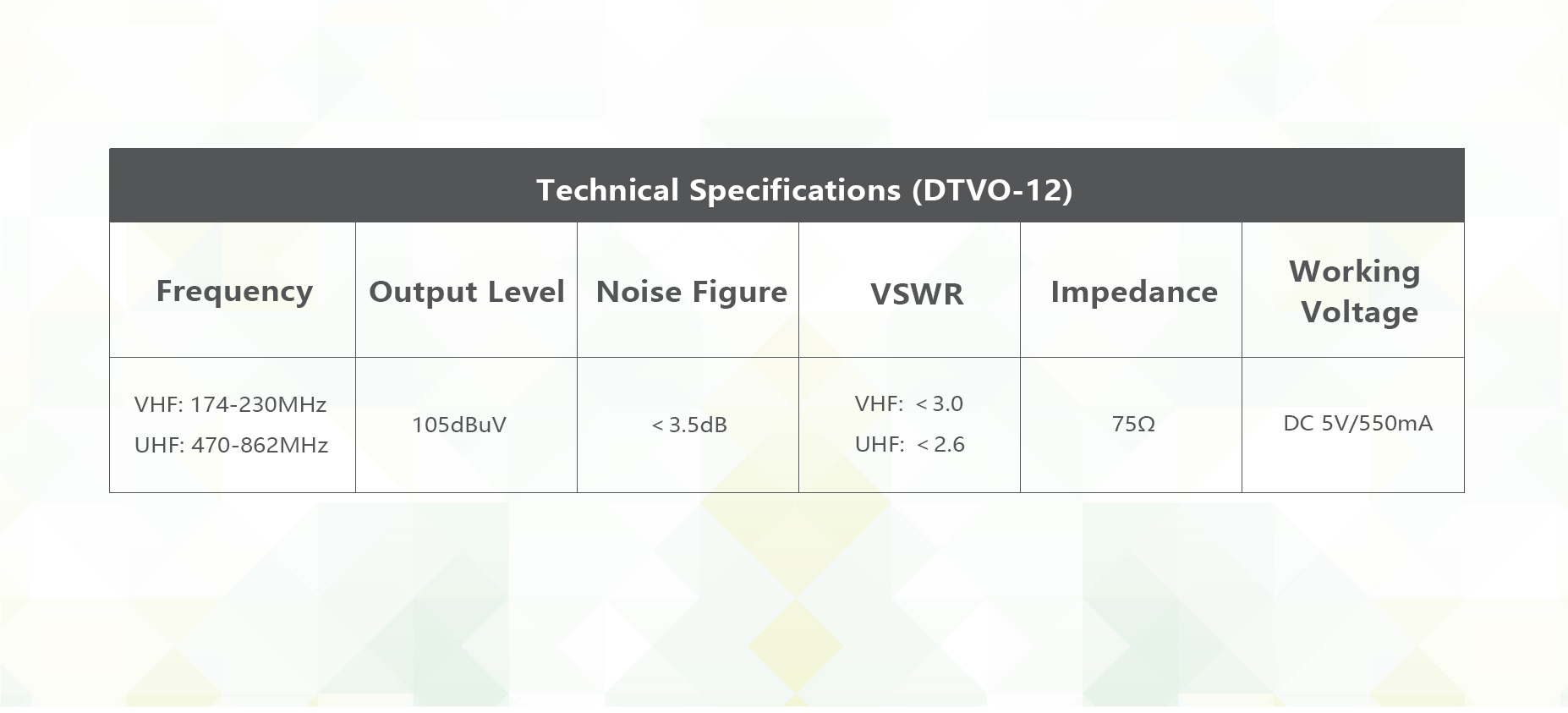

Frequency   VHF: 174-230MHz     UHF: 470-862MHz

Output level:  105dBuV

Noise Figure: ＜3.5dB

VSWR   VHF: ＜3.0   UHF: ＜2.6

Impedance:  75Ω

Working voltage:  DC 5V/550mA
